Plastic Pipe Application

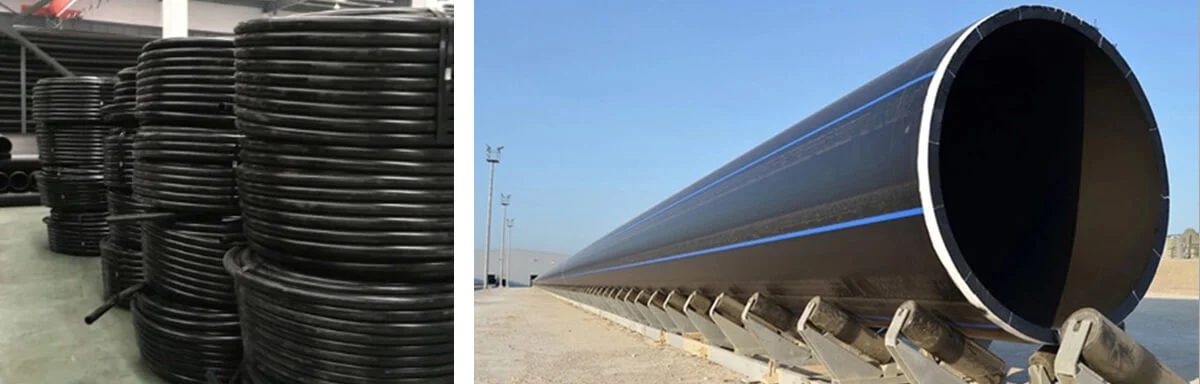

What is Plastic Pipe used for?

Plastic pipework is used for the conveyance of drinking water, waste water, chemicals, heating fluid and cooling fluids, foodstuffs, ultra-pure liquids, slurries, gases, compressed air, irrigation, plastic pressure pipe systems, and vacuum system applications

Suzhou ACC machine make different kind plastic pipe machine,the technology is advanced and reliable.

PE/PP Pipe Production Line:

Pipe Extrusion Line

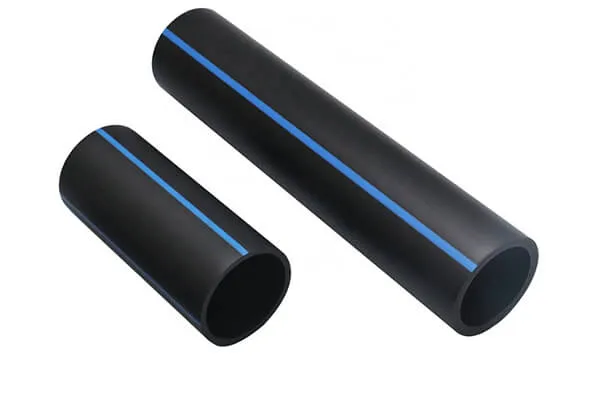

Pipe Extrusion Line

Advantage of plastic pipe production line

1 Pipe diameter from 16mm upto 1600mm.

2 With different kind wall thickness for different application.

3 Can make the pipe have different layers, such as: Middle use recycled material and inner and outer layer use new material

4 Can also have color line co-extrusion for choice.

5 Can have some word to be printed on that.

6 Can have auto powder feeding machine for choice.

7 Can have PLC touch screen control.

8 This line have CE and ISO9001-2000 quality certificate.

motor

with SIEMENS

inverters

with ABB

contactors

with Schneider

temperature controls

with Omron

PLC control

with SIEMENS

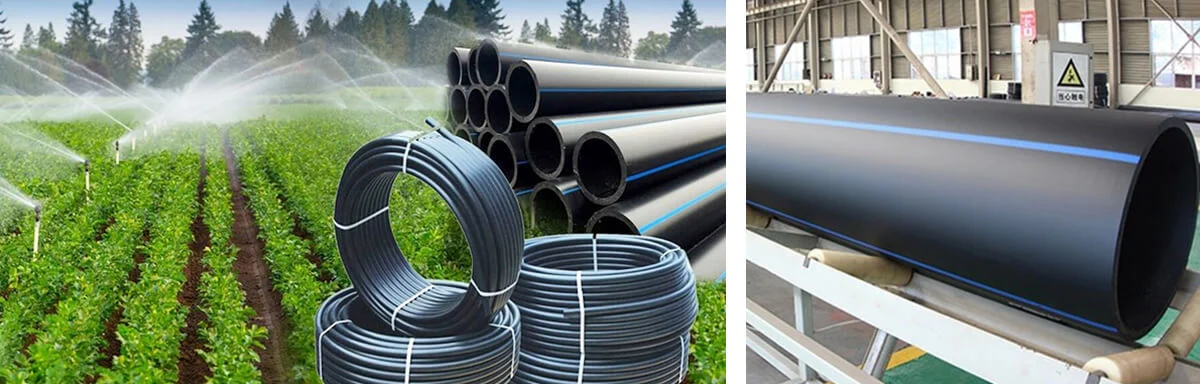

Application Scenario

Main Technical data

ModelPipe rangeExtruderMax outputMax speedTotal power
PVC-50*216-50mmSJSZ65/132250kg/h10 m/min85 kw
PVC-6316-63mmSJSZ51/105150 kg/h10 m/min60 kw
PVC-11050-110mmSJSZ55/110180 kg/h10 m/min70 kw
PVC-16063-160mmSJSZ65/132300 kg/h5 m/min90 kw
PVC-250110-250mmSJSZ80/156400 kg/h3.5 m/min120 kw
PVC-315160-315mmSJSZ80/156400 kg/h3 m/min160 kw
PVC-450250-450mmSJSZ92/188700 kg/h1.5 m/min200 kw
PVC-630315-630mmSJSZ92/188700 kg/h0.9 m/min230 kw
Model/Item Pipe range Extruder Max.output Motor power Total power
PE-63 16-63mm SJ65/33 SJ25-25 120-180kg/h 45KW 110 KW
PE-110 16-110mm SJ65/33 SJ25-25 150-200 kg/h 55 KW 130 KW
PE-160 50-160mm SJ75/33 SJ25-25 150-220 kg/h 75 KW 150 KW
PE-250 75-250mm SJ75/33 SJ25-25 280-350 kg/h 90 KW 280 KW
PE-315 110-315mm SJ90/33 SJ25-25 250-350 kg/h 132 KW 350 KW
PE-450 160-450mm SJ90/33 SJ25-25 350-450 kg/h 160 KW 400 KW
PE-630 315-630mm SJ120/33 SJ25-25 550-850 kg/h 200 KW 550 KW
PE-800 450-800mm SJ150/33 SJ25-25 800-1300kg/h 250 KW 750 KW
Model Normal speed machine High speed machine
Production speed 8-10mmin 20-25mmin
Production capacity 15-25kg/h 30-60kg/h
Extruder SJ-45 SJ-65
Motor power 15kw 30kw
