MATERIAL

PLA, ABS, PP, PC, TPU, PETG, HIPS, PCL, PVA, PET, PEEK, EVA, PEI, PPSU, Carbon fiber and other 3D printing material.

ACCURATE

The production line of our company produces more accurate and smooth silk. The closed-loop control system controls the diameter error of the silk at 0.03mm.

BEAUTIFUL

The silk production line of our company has realized precise line arrangement to maximize the winding space, beautiful and orderly.

TOUGHNESS

In multi - shape printing, the toughness of the silk must be able to withstand multi - Angle bending degree.

Cooperative Partner

EQUIPMENT FEATURES

High accuracy

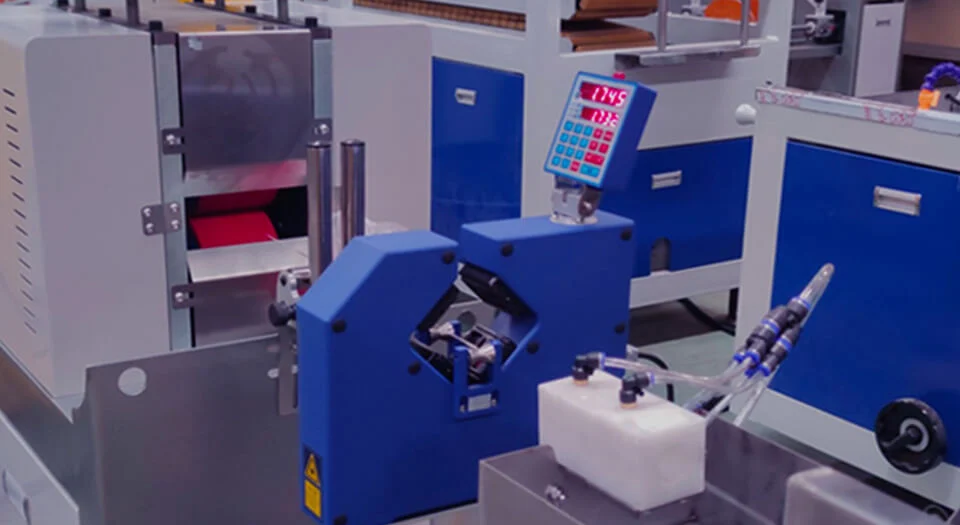

Perfect tolerance:+/-0.03mm, diameter of the filament is controlled by automatic PID system; high capacity speed can reach 80-110m/mins.

Easy operation

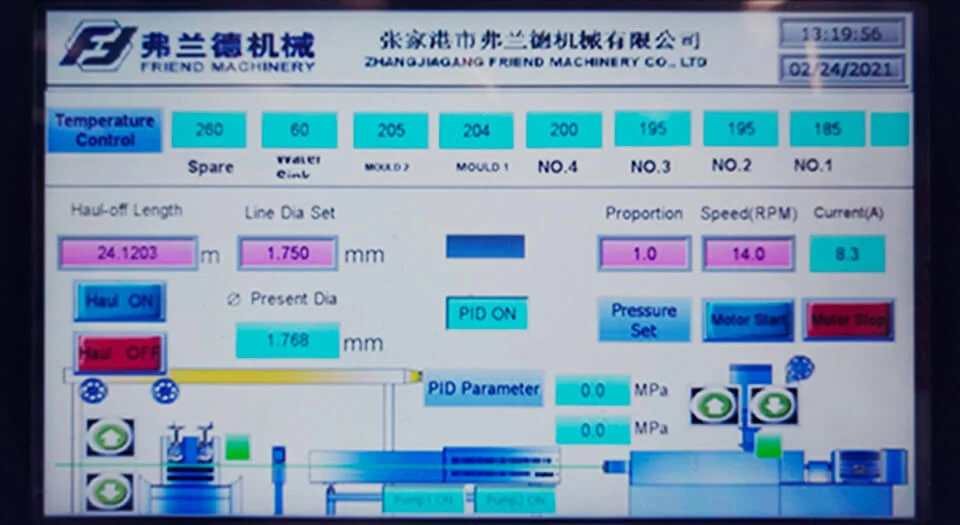

PLC full-automatically control system

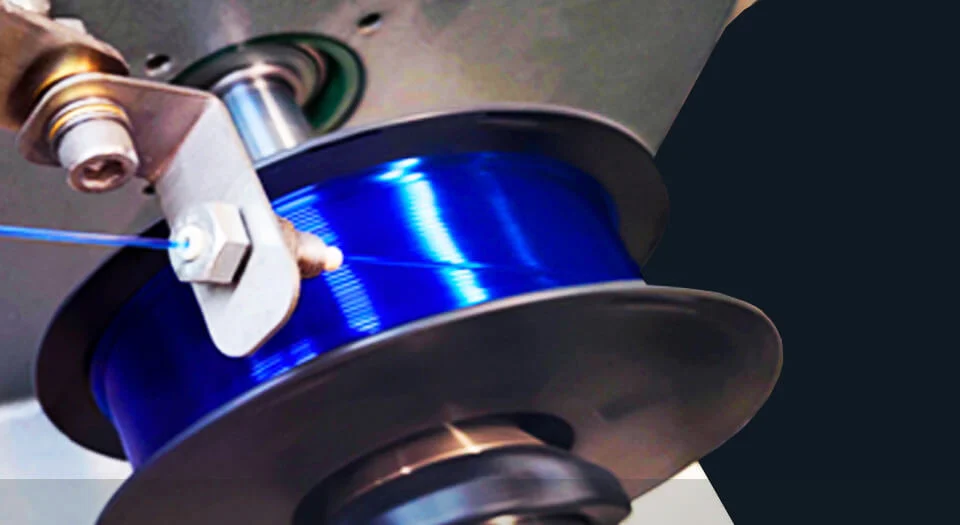

Filament winding neat well

winding machine is equipped with servo automatic winding system, winder and automatic storage device are automatically closed loop controlled,its can realize the perfect winding of the filament.

Equipment Parameters

ModeFLD-45AFLD-35AFLD-35BFLD-25
Capacity(kg/h)20-2510-155-81-1.5
Screw diameter45mm35mm35mm25mm
LD28:1
Total power(kw)2518184
Filament Quantity1111
Diameter(mm)φ1.75/φ3.00
Tolerance(mm)0.020.03
Diameter controlAutomatic feedback systemTractor control
Operating Temp0-480°
L*W*H(mm)13000*100*260013000*100*26006000*800*20002200*800*1600
Weight KG230021001200500
CertificationCE SGS TUVCE SGS TUVCE SGS TUVCE SGS TUV

Our Products

After-sale Service

01

Equipment warranty period:

warranty period of 1 year  after 1 year, the equipment will be maintained for life, and the cost of parts will be charged.

02

Personnel training:

we provide teaching equipment services to ensure that you master the equipment technology

03

Equipment commissioning and installation:

after the equipment arrives at your company, we will immediately send debugging personnel to install and debug the equipment

Applications

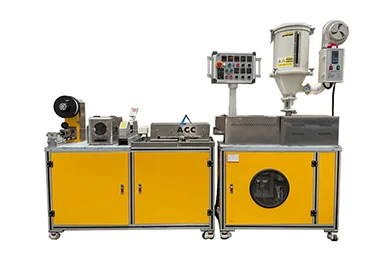

Machinery Equipment

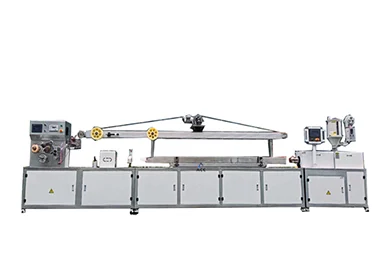

FLD25:This extruder is widely used in all kinds of laboratory and research institution as its advantages of small dimension,lower energy consumption and easy movement.

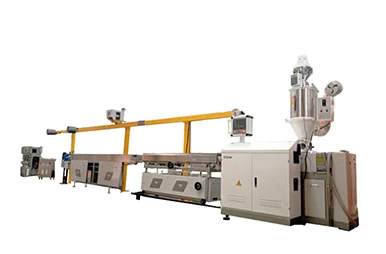

FLD35:This filament extrusion line is well suited for individual investors to invest as the part-time investment program and stage project.

FLD45:This filament extrusion line has advantage of high production capacity,very stable production performance,much accuracy tolerance and low working noise.
