FLD-25 Filament Extruion Machine

AS 3D printing industry is developing so hot now. 3D printing filament production line is becomming most popular printing materials in this period. Our Company developed theABS PLA 3D Filament Extrusion Line for customer to produce good quality 3d printing filaments to resell and get profit.

Product Description

  • This production line is independently developed by our company, using the latest extrusion molding technology, the purpose is to be used for laboratory testing materials have been investors' initial investment in 3D printing filament.

  • This production line is suitable for most of the plastic raw material (ABS/PLA/PEEK/PP/PE/PC/TPU/PETG…), production of products tolerance of + / – 0.03 mm.

  • The company's machines are sold overseas all the year round, won the majority of foreign customers consistent high praise.

Machine Function

  •  Extrusion molding performance test of polymer material wire;

  •  Formulation design of plastic wire;

  • Optimization and control of plastic wire extrusion process parameters;

  • Used for extruding single/multi-cavity and multi-specification plastic wire;

  • Process optimization, cost control and small-scale production.


  •  Low error printing wire control by small model precision screw;

  •  Perfect tolerance:+/-0.03mm, even+/-0.01mm;

  •  It can produce the different diameter of filament from 1.75mm-3.00mm;

  •  Easy operation: Panel clean control system;

  •  Produce different raw material: ABS PLA PA HIPS PET;

  •  Low maintain. We did not receive any complaint once the machine is running;

  •  We can provide installation services overseas.

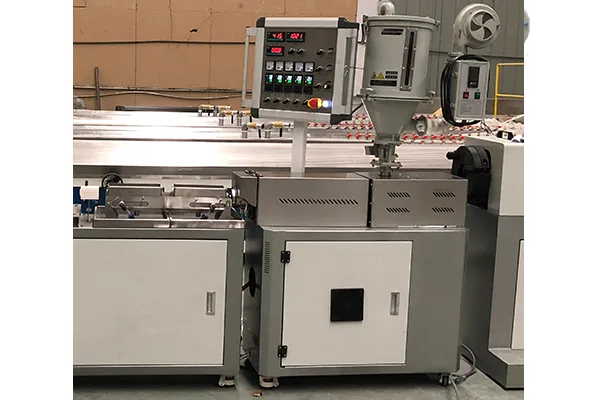

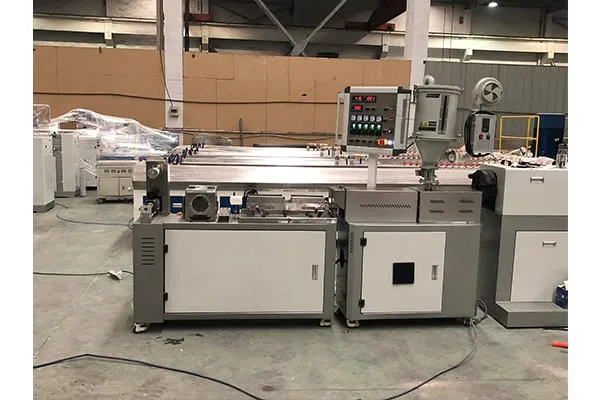

Production Flow

Hopper dryer——Single screw extruder——Die head——Water tank—— Laser measuring diameter machine—— Haul off machine—— Winder machine

Production Line Parameter:



Applied materials


Screw diameter




Screw Speed


Linear velocity


Filament diameter




Heating/cooling way

Electrical heating/Fan cooling

Operating Temp

Room temp-480℃

Control System

Siemens Control



Main motor Power


Control Type

Clean panel control

Working Voltage

3 Phase 380VAC±10%,1 Phase 220VAC±10%,50Hz

Install Power

About 5kw





1611729471629334.webp 1611729579978935.webp


                 Automatic vacuum loader


Auto Loaders Series utilizes a stainless steel hopper and a high efficiency vacuum motor .Built with a motor overload protection device and material shortage automatic alarm system ,this machine is of light weight ,endurance, strong absorption ,easy to install and operate. It can work and be installed with different types of plastic molding machines ,hot air dryers and other facilities to provide the best solution to material conveying.

It is the high efficiency model drying machine for the all kinds of pellets .they can be fully dried as the humidity to setting the temperature.

                                          Hopper dryer



FLD25 filament making machine 03.webp

Our machine is equiped by international famous brand parts:


Temperature-controlled meter:Omron

Inverter:ABB Delta Delixi

Screw and barrel nitrogen treatment:0.4-0.7mm

Switch:Delixi shneider

Diameter: 1.75mm 3mm

Material: S136 steel

Advantages: Easy clean

Binding Post: Taiwan

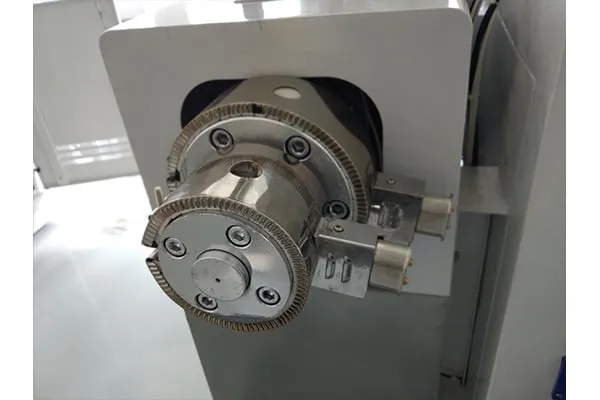

                                Precision alloy mould

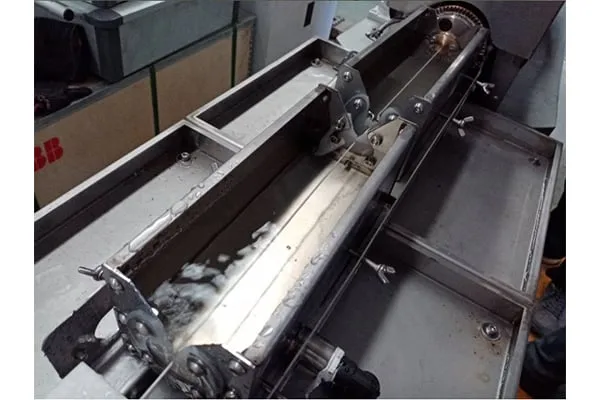

                                 Temperature water tank FLD25 filament making machine 04.webp

Water: recycling water

Hot tank:1 set

Cooing tank:1 set

Water pump:450w

Cooling method: force cooling

Central Height: 1000mm

Calibration gates:1 pcs

Temperature control system:1 set

Material: S136 steel

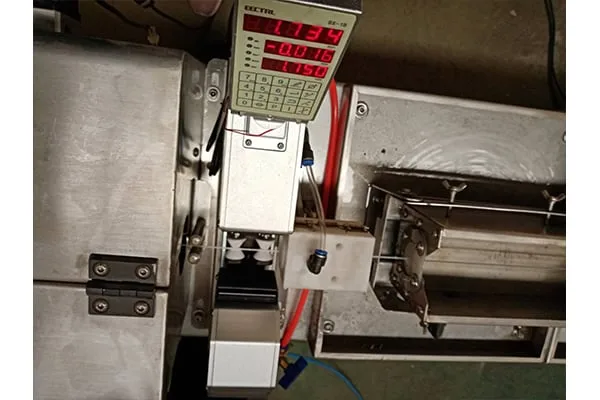

                        Laser dia-measuring instrument

FLD25 filament making machine 05.webp

Measurement: Laser scanning

Laser: Visible red semiconductor laser

Laser output power: <2Mw

Operating voltage: ~ 220V±15%    50 – 60Hz

Operating temperature: -10~40 °C

Humidity: <85% RH

Work mode: continuous

Power consumption: <30W

                              Haul-off machine

FLD25 filament making machine 06.webp


Motor: Servo motor

Servo Motor model: 80WT-M003830

Controller: Fuji Controller

Drawing way: roller

Roller number:2 sets

Haul –off Speed: 0-30 m/min

Roller diameter:100mm

Central Height:1000mm


Automatic wiring:1 set

Drive way: Torque motor

Distribution device:1 set

Switch: Delixi

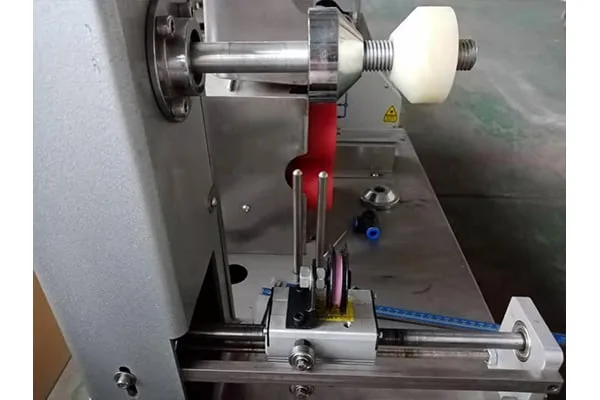

                                           Filament Winder

FLD25 filament making machine 07.webp

3D filament machine01.webp

FLD25 filament making machine 01.webp

3D filament machine02.webp FLD25 filament making machine 04.webp
FLD25 filament making machine 05.webp 3D filament machine03.webp
FLD25 filament making machine 02.webp 3D filament machine04.webp
