Product Description
-
This FLS-45 filament extrusion line is independently developed by our company, using the latest extrusion molding technology, and strive to produce high quality, high precision 3D printing silk for customers.
-
This 3d printer filament extruder is suitable for most of the plastic raw material (ABS/PLA/PEEK/PP/PE/PC/TPU/PETG, etc.), production of products tolerance of + / – 0.02 mm.
-
The company's machines are sold overseas all the year round and have won the praise of the majority of foreign customers.
Machine Function
-
Extrusion molding performance test of polymer material wire;
-
Formulation design of plastic wire;
-
Optimization and control of plastic wire extrusion process parameters;
-
Used for extruding single/multi-cavity and multi-specification plastic wire;
-
Process optimization, cost control and small-scale production.
Advantages
-
Higher capacity compared with other suppliers using the same model;
-
Perfect tolerance:+/-0.03mm, even+/-0.01mm;
-
It can produce the different diameter of filament from 1.5mm-3.0mm;
-
Easy operation: PLC full-automatically control system;
-
Produce different raw material: ABS PLA PA HIPS PET;
-
Low maintain. We did not receive any complaint once the machine is running;
-
We can provide installation services overseas.
Production Flow

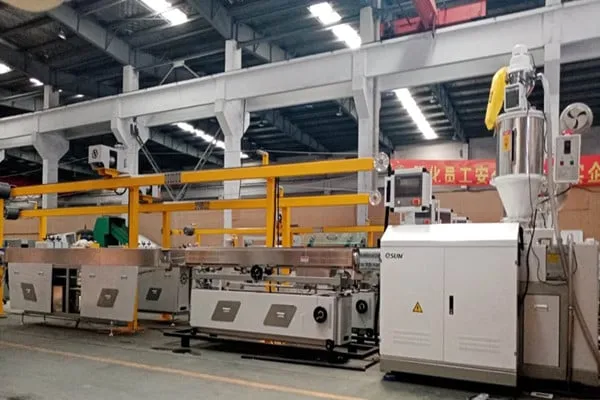

Hopper dryer——Single screw extruder——Die head——Water tank—— Laser measuring diameter machine—— Haul off machine—— Storage wire stand—— Winder machine
Production Line Parameter:
|
Type |
FLD45/28 |
|
Applied materials |
ABS、PEEK、TPU、PLA、PETG、PE、EVA、PP、PC and so on |
|
Screw diameter |
45mm |
|
L/D |
28 |
|
Screw Speed |
0-150rpm |
|
Linear velocity |
0-100m/min |
|
Filament diameter |
1.75mm、2.85mm、3mm |
|
Tolerance |
±0.02mm |
|
Heating/cooling way |
Electrical heating/Fan cooling |
|
Operating Temp |
Room temp-480℃ |
|
Control System |
Siemens Control |
|
Capacity |
20kg/h |
|
Main motor Power |
15kw |
|
Control Type |
SIEMENS PLC control |
|
Working Voltage |
3 Phase 380VAC±10%，1 Phase 220VAC±10%，50Hz |
|
Install Power |
About 30kw |
|
L*W*H |
13000mm*1200mm*2100mm |
|
Weight |
1900kg |
 |
 |
Pictures
|
Automatic vacuum loader
|
Auto Loaders Series utilizes a stainless steel hopper and a high efficiency vacuum motor .Built with a motor overload protection device and material shortage automatic alarm system ,this machine is of light weight ,endurance, strong absorption ,easy to install and operate. It can work and be installed with different types of plastic molding machines ,hot air dryers and other facilities to provide the best solution to material conveying. |
|
It is the high efficiency model drying machine for the all kinds of pellets .they can be fully dried as the humidity to setting the temperature. |
Hopper dryer
|
|

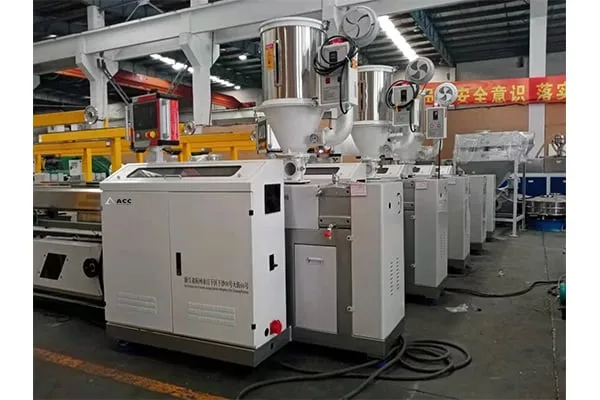

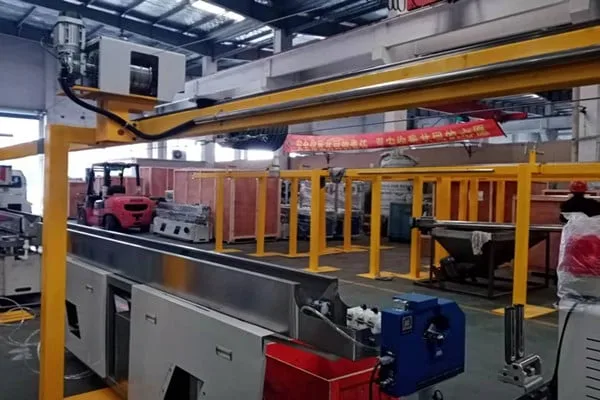

Extruder
|
Our machine is equiped by international famous brand parts: Motor:Siemens Temperature-controlled meter:Omron Inverter:ABB Delta Delixi Screw and barrel nitrogen treatment:0.4-0.7mm Switch:Delixi shneider |
|
Diameter: 1.75mm 3mm Material: S136 steel Advantages: Easy clean Binding Post: Taiwan |
Precision alloy mould
|
|

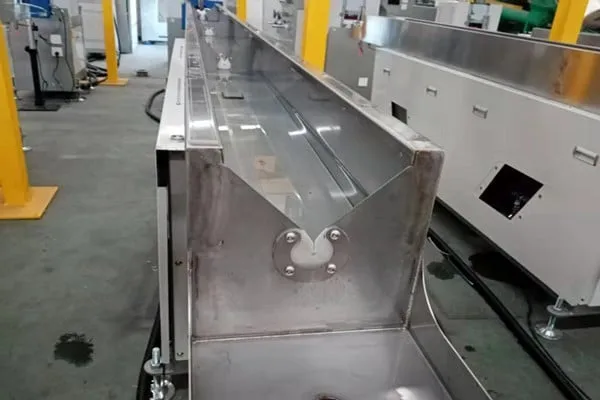

Temperature water tank
|

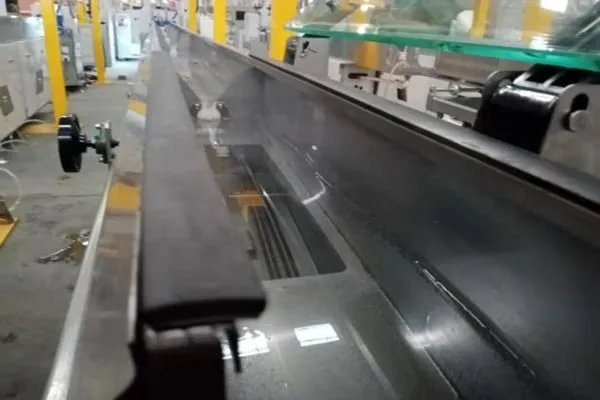

Water bath number: 2 sets Heating water bath length:2.5meters Heating power: 1.5 kw×2 Cooling water bath length:4 meters Adjust the height (up and down)：80mm Adjust the height (right and lift)：50mm The moving distance (Before and after) ：500mm Central Height: 1000mm Calibration gates:1 pcs Calibration gates diameter:2.00mm, 4.00mm Toughened glass cover:1 pcs Water bath material: Stainless steel Temperature control system:1 set Vacuum pump:1.5kw Equipped with additional water tank and pump for recirculation of the water to an external water system |
|

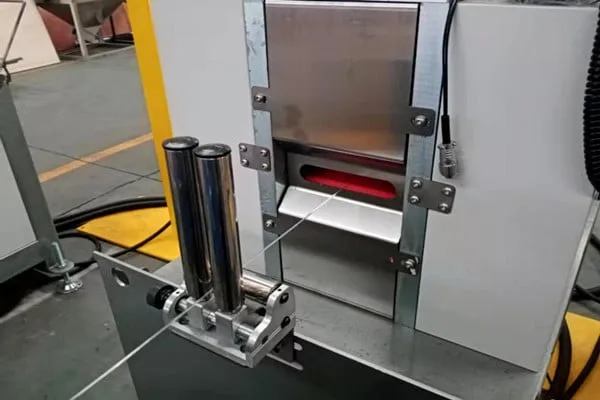

Laser dia-measuring instrument
|
Motor drive: AC Servo Motor Servo Motor model: 80ST-M03520 Controller: Fuji Controller Motor power:0.73kw Drawing way: roller Roller number:6 sets Haul –off Speed: 0-180 m/min Roller diameter:250mm Central Height:1000mm |
|

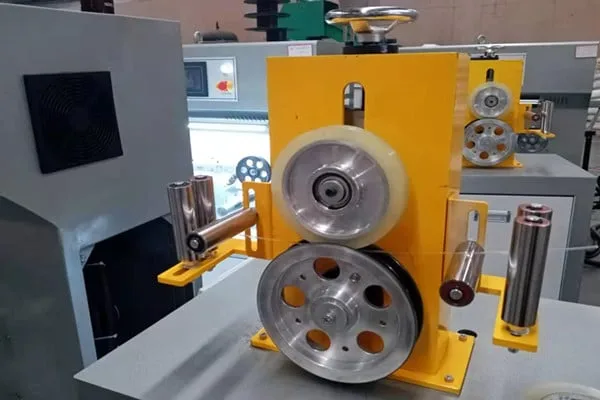

Haul-off machine
|
Motor power: 2.2kw Speed:0-180m/mim Roll material:Rubber Roll groups:2 Roll diameter:160mm Groove:1 Adjustment way:Hand movement |
|
Motor drive: AC Servo Motor Servo Motor model: 80ST-M03520 Controller: Fuji Controller Motor power:0.73kw Drawing way: roller Roller number:6 sets Haul –off Speed: 0-180 m/min Roller diameter:250mm Storage system of 3D filament machine,increase the productivity. Storage length:100 meters Plastic roller diameter:300mm Electromagnetic motor:0.75kw |
Filament stocker
|
|
Filament back checker
|
Motor power: 2.2kw Speed:0-180m/mim Control:Stop and open by haul-off machine. |
|
Motor power: 7.5kw×2 Drive way: Torque motor Distribution device:2 sets Automatic feed filament device:1 set Automatic feed filament device motor:25w Cutting setting device:1 set Switch: Delixi Delixi electric system: Delixi Control system:PLC |

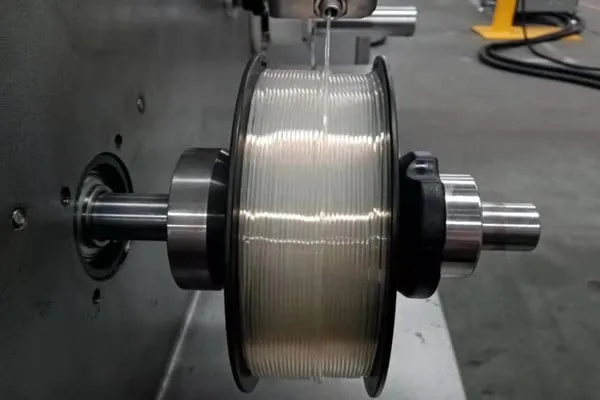

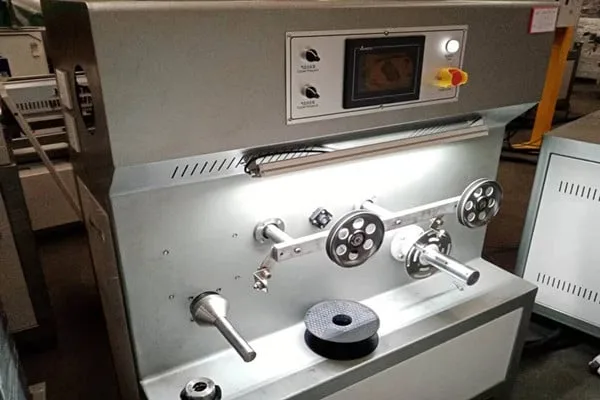

Filament Winder
|
|
PLC control system
|

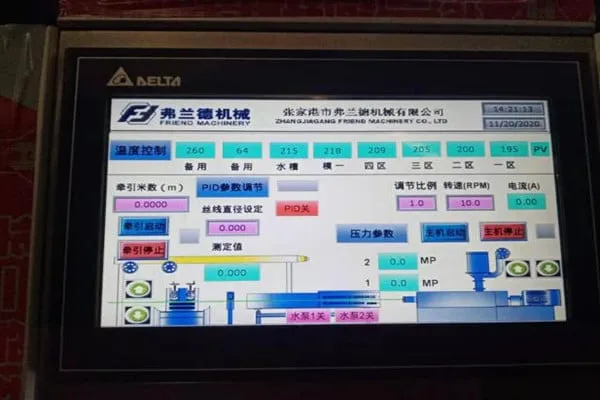

The heating temperature is controlled by the digital panel, and the winding loop is controlled to achieve the diameter and winding speed of the filament. |
 |
 |
 |
 |
 |
 |
 |
 |
