Product Description

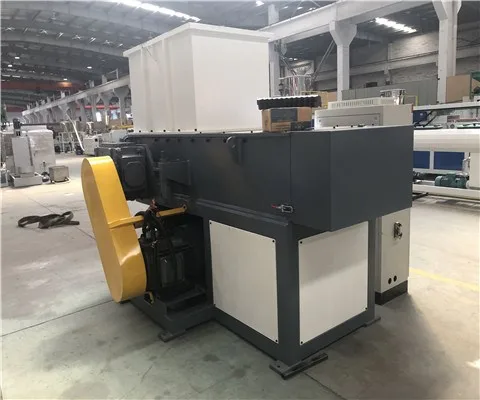

The single-shaft shredder mainly consists of a blade spindle, a fixed knife, a carrying case, a box bracket, a feeding system, a hydraulic pushing system, a power system, and an electrical control system. Mainly used to shred wood, rubber, plastic, paper and other waste materials.
The material enters the inside of the shredder box through the feeding system, and the box body carries the shredder blade, and the pushing box pushes the material to the vicinity of the blade, and the material is shredded by tearing, squeezing, shearing, etc. Small pieces of material, discharged from the mesh holes.
Features:
Suitable for shredding materials with high entanglement, allowing a small amount of light and thin metal objects in the material
Low tool usage and maintenance costs
The price of the twin-shaft shredder, the three-axis shredder, and the four-axis shredder are relatively low at the same power.
Easy to change tools
Material size can be adjusted according to the size of the screen holes.
Product Details
Product Parameters
|
Model |
DZ-600 |
DZ-800 |
DZ-1000 |
DZ-1200 |
DZ-1300 |
|
Motor power(kw) |
22 |
37 |
55 |
75 |
75-90 |
|
Rotor diameter（mm) |
310 |
400 |
400 |
400 |
400 |
|
Rotary blades(PCS) |
24/40 |
46/56 |
58/68 |
86 |
88 |
|
Fixed blades(PCS) |
2 |
2 |
2 |
2 |
2 |
|
Blade material |
SKD11 |
||||
|
Feeding mouth size(mm) |
600*700 |
800*1000 |
1000*1100 |
1200*1300 |
1300*1400 |
|
Rotary speed(rpm) |
80-85 |
80-85 |
80-85 |
80-85 |
80 |
|
Cylinder trip(mm) |
600 |
800 |
1000 |
1200 |
1200 |
|
Mesh size(mm) |
50/120/150(Customized) |
||||
|
Weight(KG) |
2700 |
3800 |
5000 |
6000 |
6500 |
|
Appearance size(mm) |
2200*1400*2000 |
2800*1800*2000 |
3200*1950*2200 |
3700*2100*2200 |
4200*2200*2200 |
|
Voltage(V) |
380V, 50HZ, 3P(Can be customized) |
||||
|
Capacity(kg/h) |
100-300 |
300-500 |
500-1000 |
800-1300 |
1000-1500 |
