Product Features

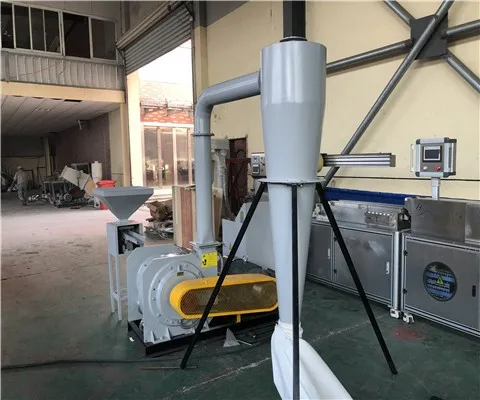

Plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.
Product Details
Product Parameters
|
Model |
SMP-400 |
SMP-500 |
SMP-600 |
SMP-800 |
|
Grinding diameter |
Ø400 |
Ø500 |
Ø600 |
Ø800 |
|
Number of rotor |
3 sets |
1 set |
1 set |
1 set |
|
Rotation speed |
3400-3700rpm |
3700rpm |
3500rpm |
3200rpm |
|
Motor power |
30kw |
37kw |
55kw |
75kw |
|
Output |
50-150kg/h |
200-300kg/h |
300-400kg/h |
400-500kg/h |
|
Powder fineness |
20-120mesh |
|||
|
Overall weight |
1000kg |
1200kg |
1650kg |
2800kg |
|
Overall size |
1.25*1.5*1.53m |
5.9*1.45*2.9m |
6.2*1.55*3.1m |
6.5*1.65*3.3m |
