PE Pipe Production Line

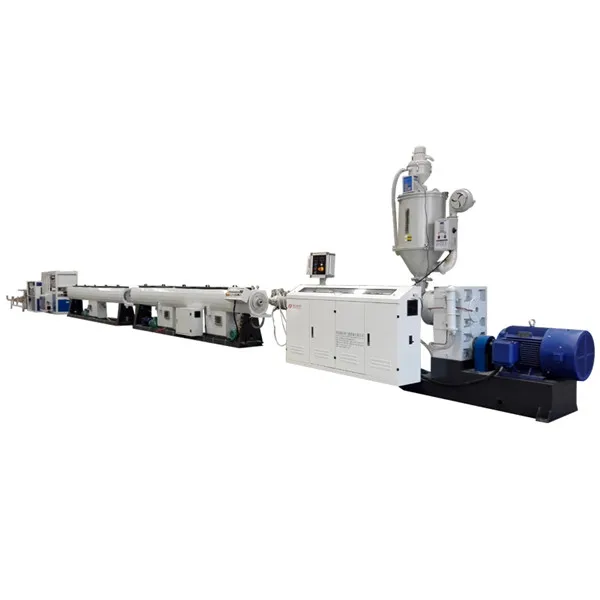

The composition of PE pipe production line: automatic feeder, drying hopper, single screw extruder, color line extruder, mold, vacuum correction tank, spray tank, haul off machine, cutting machine, stacker.
PE pipe is mainly made of PE particles,PE pipe has a long service life of 50 years at least under normal condition.PE pipe has good hygiene, non-toxic, no heavy metals, no scaling, no bacteria, and can resist the corrosion of various chemical media, no electrochemical corrosion. The inner wall is smooth and the friction coefficient is very low. Good flexibility, high impact strength and strong shock resistance.

The unique hot-melt butt joint and hot-melt bearing connection technology make the joint strength high and connect with the pipe body to ensure the safety and reliability of the interface. The welding process is simple, the construction is convenient, and the comprehensive cost of the project is low.

• 1. Automatic feeding and drying.

• 2. The extruder adopts high efficient length diameter ratio screw structure with high production efficiency.

• 3. Two stage vacuum correction tank, and the vacuum  correction tank is made of 304 stainless steel.

• 4. The haul off machine adopts crawler type, with large tractor and variable frequency speed regulation.

• 5.The cutting machine adopts annular dust-free cutting, and the pipe wall is smooth.

• 6.The stacker adopts the proximity switch to control the fixed length, and the cylinder controls the blanking after cutting.

• The extruder adopts Siemens Motor, ABB inverters, Omron temperature controllers, Schneider breakers high quality components.

Production process：

Auto loader → drying hopper → single screw extruder → mould → vacuum calibration tank → spray tank → haul off machine → cutter → stacker

Model and parameter:

Machine list:

Screw feeder	Motor power:1.5kw Capacity:300kg/h

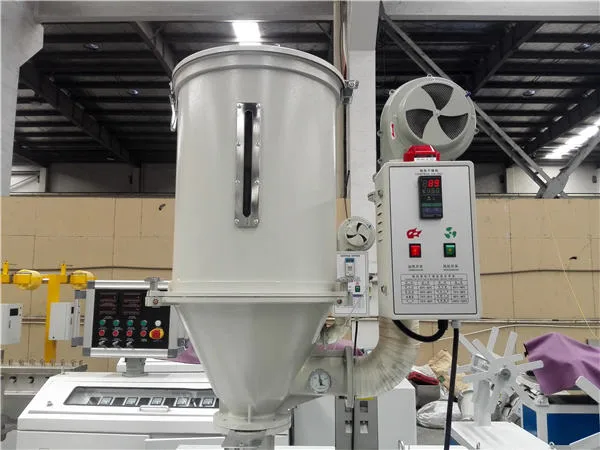

Hopper volume: 100kg Heating power:10kw	Drying hopper
SJ series single screw extruder	Screw material:38CrMoAlA Motor power:55kw,AC Heating power:18kw Motor brand:Siemens Gearbox brand:Guomao Inverter brand:ABB Contactor brand:Siemens Temperature controller brand:Omron
Tank length:6000mm Tank material:SUS304 Vacuum pump power:4kw*2 Water pump power:4kw*2 Vacuum degree: -0~0.08Mpa Moving motor:1.1kw	Vacuum calibration tank
Haul off machine	Haul off type:rubber block,2 pcs Motor power:3 kw Clamping method:air cylinder Speed control:Frequency Inverter brand:ABB Air compressed pressure:0.5~0.7 Mpa
Cutting type:circular cutting Motor power:1.5kw Clamping method:air cylinder Air compressed pressure:0.5~0.7 Mpa	Cutting machine
Stacker	Length of stacker:4500mm Plate material:SUS304 Discharging control:air cylinder
