PVC Cable Trunkings Making Machine/PVC Cable Tray Duct Making Machine

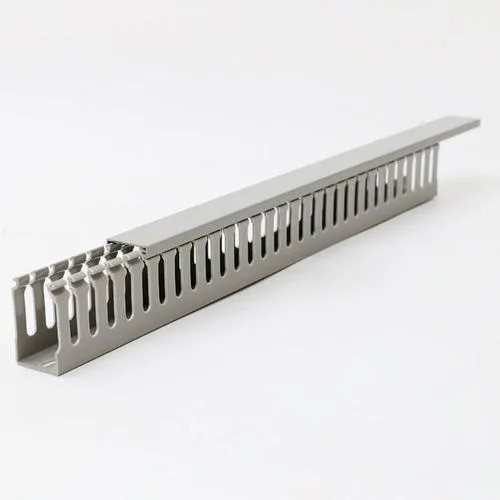

PVC trunking is only one type of trunking, which is mainly used for internal wiring of electrical equipment. Nowadays, environmentally friendly flame-retardant PVC trunking is commonly used. 1. PVC trunking has the characteristics of insulation, arc prevention, flame retardant and self-extinguishing. 2. PVC trunking mainly plays a role of mechanical protection and electrical protection. 3. PVC trunking is convenient for wiring, neat wiring, reliable installation, and easy to find, repair and exchange lines.

Product Description

  • The pvc trunking making machine is mainly used for producing various sizes of PVC profiles, pvc cable trunking, ceiling panel, window sill, WPC decking, WPC flooring and other shaped profiles.
    Normal pvc trunking making machine is composed of extruder, mould, vacuum calibration table, haul-off and cutter, stacker. With different mould, PVC profile machine can produce PVC products with different shapes, Mould designed by different kinds of profile customer required.

  • There are many varieties and specifications of PVC trunking, in terms of specifications, there are 20mmx12mm, 25mmx12.5mm, 25mmx25mm, 30mmx15mm, 40mmx20mm, 14mmx24mm, 18mmx38mm, etc.

Advantages

  • PVC trunking has the characteristics of insulation, arc prevention, flame retardant and self-extinguishing.

  • PVC trunking is mainly used for internal wiring of electrical equipment. In electrical equipment of 1200V and below, it plays a role of mechanical protection and electrical protection for the wires laid in it. After using PVC trunking, the wiring is convenient, the wiring is neat, the installation is reliable, and it is easy to find, repair and exchange lines

Production Flow

PVC raw material + additive → mixing → conical twin-screw extruder →mould → cool molding die → vacuum calibration table→ haul-off → cutter → rack → finished product inspecting & packing

Production Line Parameter:

Model number Screw diameter (mm) Rotational speed of screw (rpm) Effective work length (mm) Main motor power (kw) Heating power of Barrel (kw) Production capacity (kg/h) Central height of machine (mm)
SJSZ45 45/90 1-45 1070 15 9.6 70 1000
SJSZ51 51/105 1-45.5 1100 22 11.5 80 1000
SJSZ55 55/110 1-40 1200 22 18 150 1000
SJSZ65 65/132 1-38 1440 37 24 250 1000
SJSZ80 80/156 1-36.9 1800 55 36 360 1000
SJSZ92 92/188 1-34.7 2500 110 88 1000 1000


pvc trunkings machine (2).webp pvc trunkings machine (3).webp

Pictures

                       Screw feeder

screw feeder_副本.webp

Motor power:2.2kw

Feeding capacity:500kg/h

Pipe material:304 Stainless steel

Pipe diameter:Φ104mm

Drive System

Motor power: 37kw

Reducer form: Gear reduction

Reduction ratio:38:1

Gear box brand:Jiangyin gear box

Electric Cabinet

Integrated button console

Power air switch: Siemens

Inverter: ABB

Contactor: Siemens

Breaker: Delixi

Temp setting table:Omron

                SJSZ-65/132 twin screw extruder

wpc extruder.webp

Mold


Mould dimension according to customer requirements

Mould material Steel 20Cr

Inner treatment Polish

Calibration tanks and basin are made of stainless steel

Table length 4000mm

Table width 900mm

Ceneter distance 320 mm

Vacuum pump brand Fangli

Vacuum pump power 4 kw

With quieter, Integral floor, Vibration free chassis, Current protection.

Vacuum degree: 0-0.08Mpa

Water pump brand Fangli

Water pump power 2.2 kw

Vacuum degree 0.08-0.09Mpa

Water channel Stainless steel

                    Vacuum shaping table

wpc decking floor machine (3).webp

Traction machine

traction machine.webp

                         Traction power:5.5kw

                         Briquetting material: Soft rubber

                         Inverter:ABB Brand

                         Working air pressure:0.5~0.7Mpa

Cutting power:2.2kw

Control method:PLC

Working air pressure :0.5~0.7Mpa

Configure a vacuum cleaner.

                                Cutting machine

pvc trunkings machine (5).webp

Stacker


Length:6000mm

Control method:Pneumatic

Material:304 Stainless steel

Working air pressure :0.5~0.7Mpa

pvc cable trunkings machine (4).webp pvc cable trunkings machine (1).webp
pvc cable trunkings machine.webp pvc cable trunkings machine (3).webp
pvc cable trunkings machine (5).webp pvc cable trunkings machine (2).webp
pvc cable trunkings (1).webp pvc cable trunkings (2).webp
