Product Description

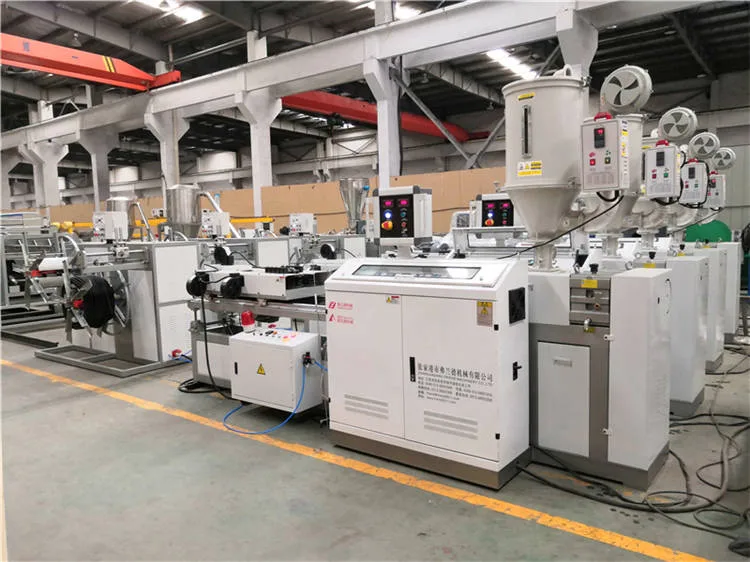

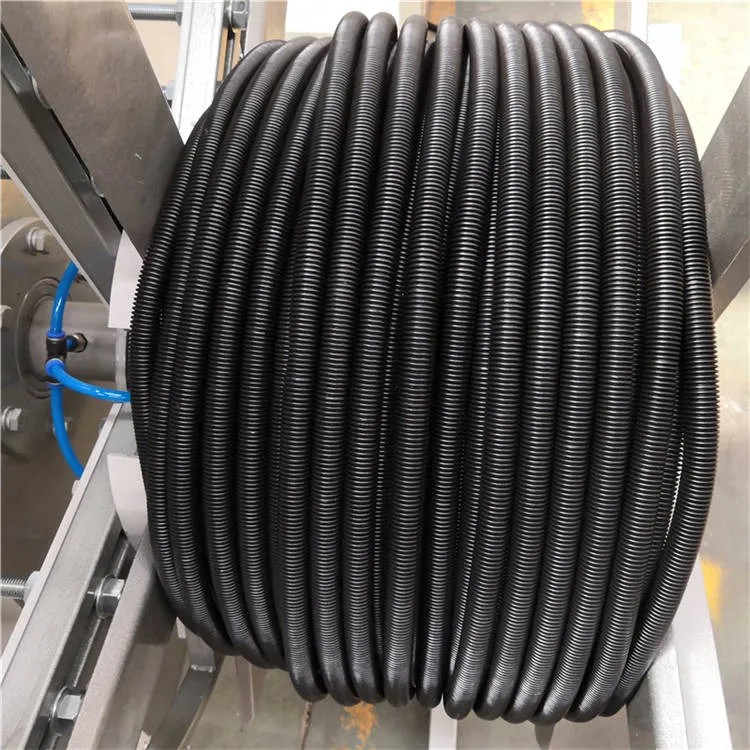

The plastic corrugated pipe production line is mainly used to produce flexible corrugated pipe for electrical wire protection, the production raw material is PE/PP/PVC/PA granules.

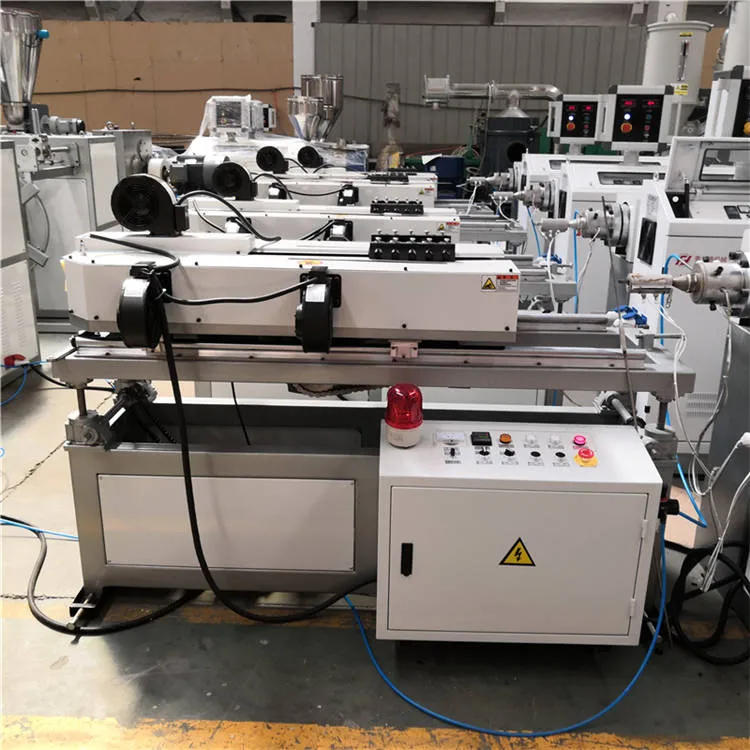

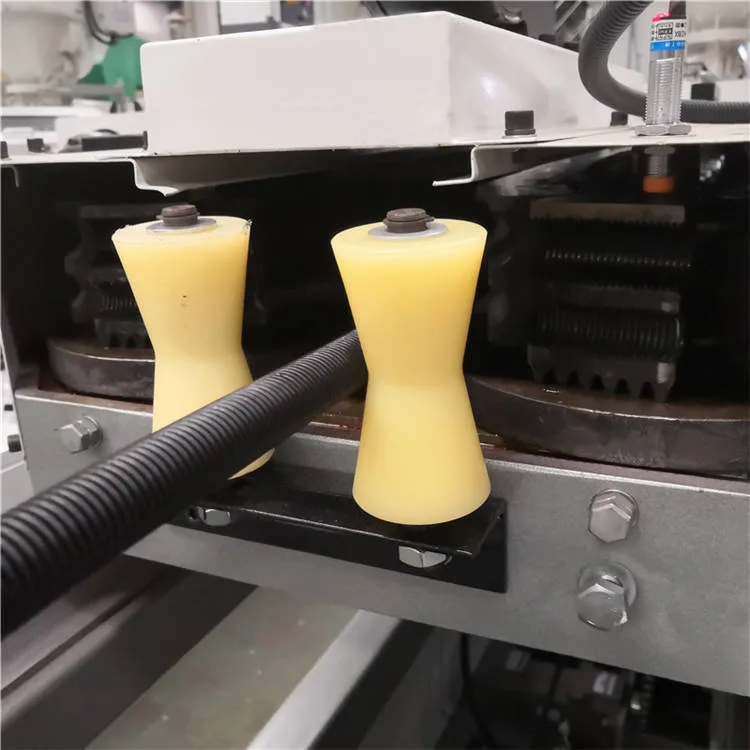

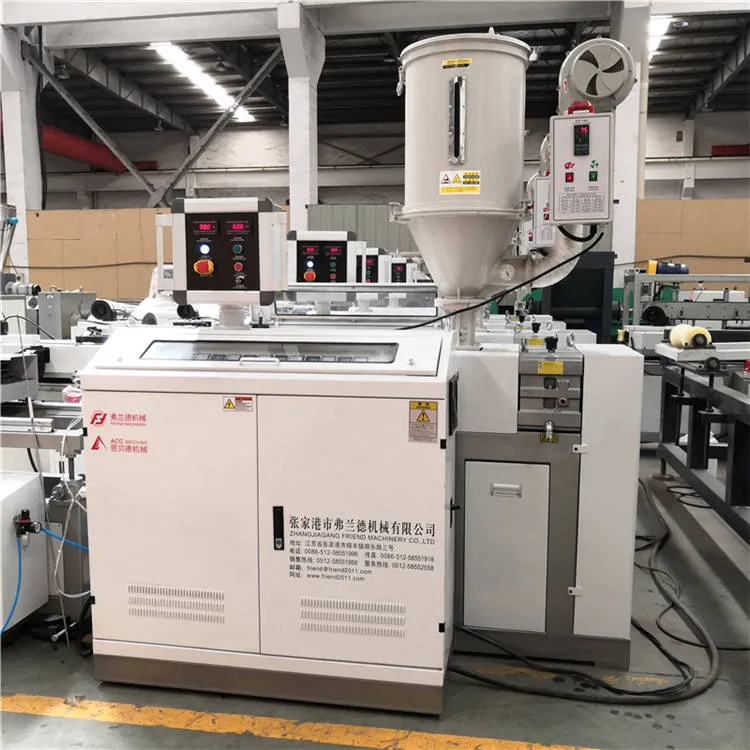

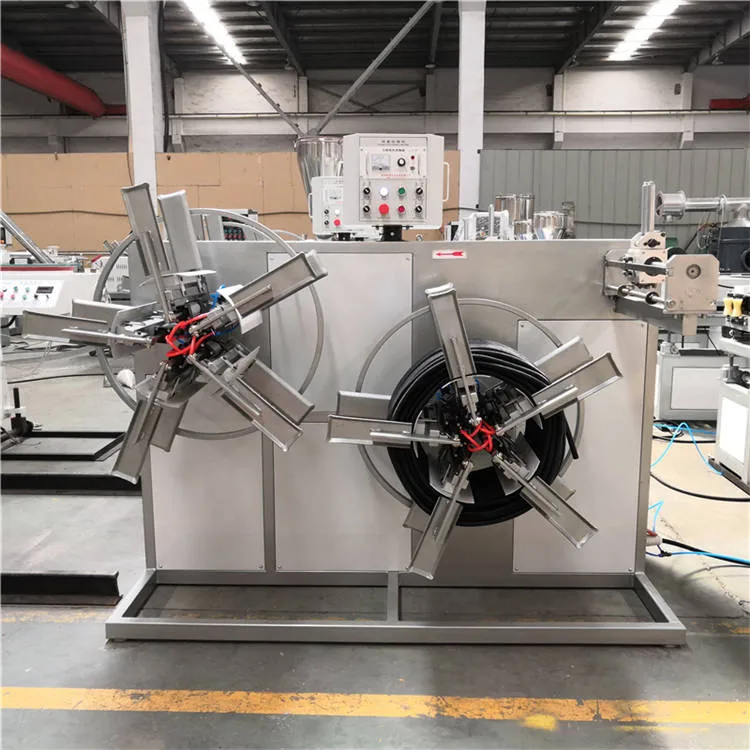

The plastic corrugated pipe production line is mainly composed of vacum feeder, single screw extruder, die head, forming machine, forming modules and winder.
Product Parameters
| Machine model | Raw material | Production speed | Dimension | Installed power |
| FLD45 |
PE/PP/PVC/PA granules |
5-8m/min | 8m*1.2m*2.4m | 25kw |
| FLD65 | PE/PP/PVC/PA granules | 20-25m/min | 10m*1.5m*2.4m | 40kw |
Product Details
