PE/TPU/TPR Soft Profiles Making Machine/Plastic Diversion Groove Extruder

wood-plastic floor means that the compounding, devolatilization, and product extrusion molding of wood-plastic composite materials are completed in different equipment, that is, after the raw materials are mixed according to a certain formula, wood-plastic particles are formed in the middle, and then they are extruded into this process of wood plastic flooring.At present, the two-step method is widely used. Generally, it is pelletized with a cone twin extruder or a flat twin extruder, and then a cone twin or single screw extruder is used to extrude molded products. It is mainly used for indoor and outdoor floors, guardrails, and pallets. Such as PE&PP wood-plastic products extrusion molding.

Product Description

  • Pipe extrusion: suitable for PP-R pipe, PE gas pipe, PEX cross-linked pipe, aluminum-plastic composite pipe, ABS pipe, PVC pipe, HDPE silicon core pipe and various co-extruded composite pipes. Sheet and sheet extrusion: suitable for the extrusion of PVC, PET, PS, PP, PC and other profiles and sheets. Extrusion of various other plastics such as silk and rods. Profile extrusion: adjusting the speed of the extruder and changing the structure of the extruder screw can be used to produce various plastic profiles such as PVC and polyolefins. Modified granulation: It is suitable for blending, modifying and enhancing granulation of various plastics.

Advantages

  • The single-screw extruder is mainly used for extruding soft and hard polyvinyl chloride, polyethylene and other thermoplastics.

  • It can process a variety of plastic products, such as blown film, extrusion tube, pressing plate, drawing ribbon, etc., and can also be used for melt granulation.

  • The plastic extruder has advanced design, high quality, good plasticization and low energy consumption.

  • It adopts involute gear transmission and has the characteristics of low noise, stable operation, large bearing capacity and long life.

Production Flow

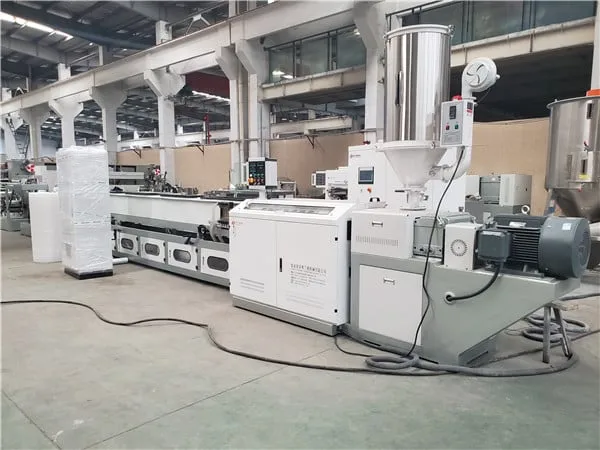

Raw material–single screw extruder–mold–water cooling tank–traction machine–winding machine

Production Line Parameter:

Model L/D  Driving power  Capacity/H
 SJ25  25:1 0.75-2.2KW  1-3KG
 SJ30  25:1  5.5KW  10KG
 SJ45  25-33:1  7.5-22KW  50-150KG
 SJ65  25-33:1  22-90KW  60-250KG

Pictures

Auto loadervacuum loader_副本.webp

Type Vacuum granules feeder

Capability 50kg

Type STG-U50

Volume 75L

Capability 50kg

Power Heating power:2.2kw   Fan power:0.37kw

Hopper dryerhopper_副本.webp

SJ-65/30 single screw extruderextruder.webp

Screw diameter: 65mm

The screw is customized to make PA granules.

Screw and barrel materials :38CrMoAlA

Equipment capacity :20-50kg/h.

Treatment: Nitrogen Treatment.

Thickness of Nitrogen layer: 0.6-0.7mm

Cast aluminum heating area with stainless steel cover

Heating way: Aluminum heating circle

Heating power: 2.5kw*4

Cooling system: Wind cooling

Cooling power: 60w*4

Size according to customers' requirements

Material 40Cr and Copper


Water tankwater tank.webp

Total Length 5000mm

Vacuum length 1500mm

Water cooling length 3500mm

Vacuum pump 2.2kw

Water pump 2.2kw

Material Stainless steel

Wall thickness 1.5mm

Center height 1000±50mm

Length 1600mm

Belt width 120mm

Speed 20m/min

Motor power 0.75kw*2

Central height 1000mm

Traction machinetraction machine.webp

Winding machinewinding machine.webp

Disk Quantity Double Disk

Winding Disk Inner Diameter 500-800mm

Maximum Winding Out Diameter 1200mm

Winding Width 250mm

Winding Speed 1-30m/min

pe profiles machine (4).webp pe profiles machine (3).webp
pe profiles machine (1).webp pe profiles machine (2).webp
pe profiles machine (8).webp pe profiles machine (6).webp
pe profiles machine (5).webp pe profiles machine (7).webp
